1000w Portable Handheld Laser Welding Machine With Wire Feeder
Application:
Sanitary industry: welding of water pipe joints, reducers, tees, valves, and showers.
Glasses industry: precision welding of glasses, such as stainless steel and titanium alloy, and the outer frame.
Hardware industry: impeller, kettle, handle, etc., welding of insulated cups, complex stamping parts and castings.
Automotive industry: engine cylinder head gasket, hydraulic tappet seal welding, spark plug welding, filter welding, etc.
Medical industry: welding of medical instruments, medical equipment, stainless steel seals, structural parts.
Electronics industry: solid-state relay seal welding, welding of connector connectors, welding of metal casings and structural parts such as mobile phones and MP3s. Welding of motor housings and wires, fiber optic connector connectors, etc.
Household hardware, kitchen utensils, stainless steel door handles, electronic components, sensors, watches, precision machinery, communications, handicrafts, and other industries, automotive hydraulic tappets and other high-intensity industry products welding.
Application:
Laser Welding Machine is widely used in mobile phone battery shell, houshold appliances,electronic components, mobile communication, hardware products, automotible accessories, glasses, kitcen industry , advertisement, stainless aluminum windows and doors, medical equipment, thermal cups and etc. other industries.
Specification:
| Model | KY-W-HW1000Wb |
| Power | 1000w |
| Operational Mode | CW/modulated |
| Central wavelength | 1080±5nm |
| Size for welding wire | 0.2-1.2mm |
| Controling way | Circuit control board + laser welding software + handheld welding head |
| Welding ways | Spot welding/continuous welding |
| Interface of fiber-optical | QBH |
| Module life | >100000hrs |
| Cooling style | Water cooling |
| Laser welding head | about 1.36kg |
| Red Laser | YES |
| Polarization State | Random |
| Power Consumption(w) | 4000 |
| Laser welding head | Wobble welding head |
| Wobble mode | Circle, liner, eight, infinity |
| Welding thickness range | <3mm |

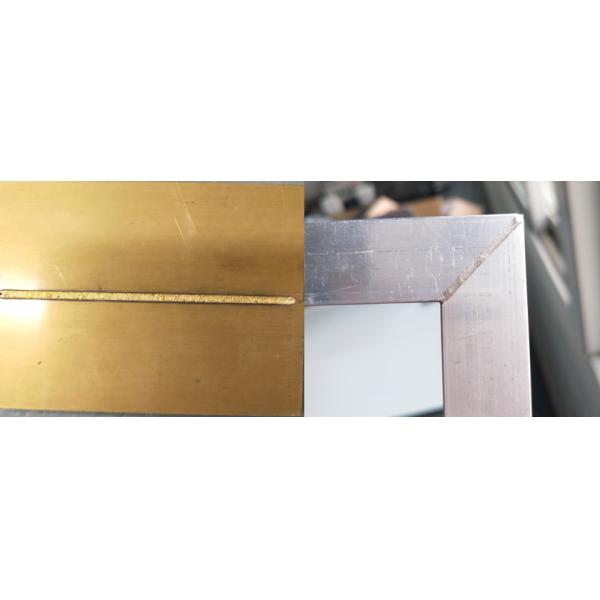

Sample:
